1000-6000pcs/h Arabic Pita Bread Tortilla Automatic Production Line

  • Material:/
  • Capacity:1000-6000pcs/h
  • WhatsApp: +8618537181190

Features

Arabic pita bread production line machine is specially designed for arabic/pita bread, chapati, tortila, etc. It is used for making the Chapati widely, it have three rollers to roll the dough flat and equal. GELGOOG Machinery offers the complete pita bread making machine with different capacities from 1000-6000pcs/h.The diameter and thickness can be adjustable freely.

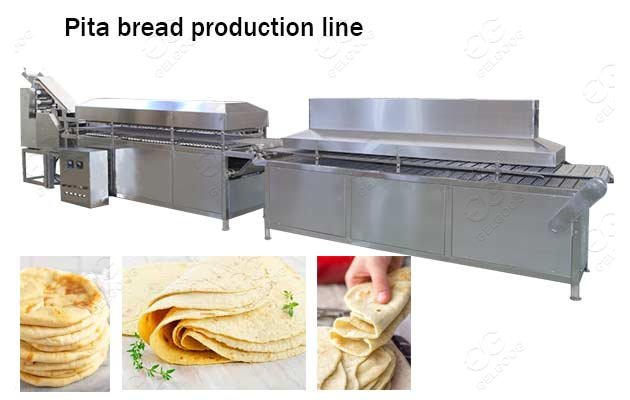

pita bread production line
Arabic bread making machine can make arabic bread, pita bread, tortilla etc
Features of Arabic bread making machine
1. The roller speed, pressure, and thickness of each roller can be adjusted as your require. the shaping part can make different sizes and shapes wrapper by changing the mold.
2. Bread diameter can be customized as your requirements.
3. Easy operation, molds can be changed easily within 5 minutes
4.Waste recycling system, the waste can be used twice directly. Teflon coating cutting mould ensures the demoulding easily.
5.Stainless steel roller, PU conveyor, makes the production hygienic.

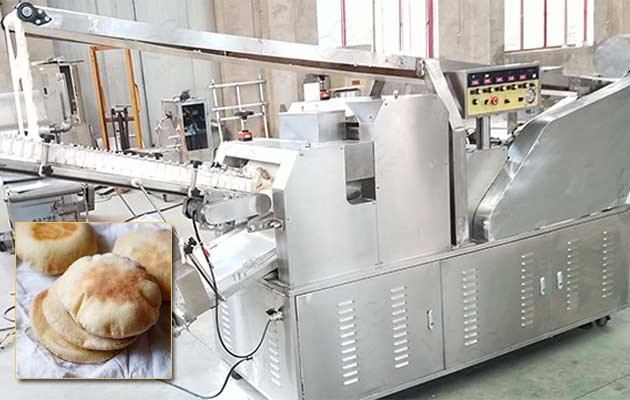

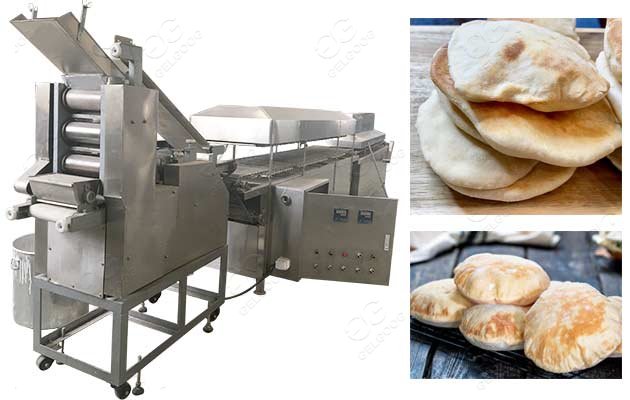

making pita bread machine
The whole line process of Pita bread machine is just as follows:
Mixing--forming dough sheet--heating & baking--cooling
1. The dough goes through three gradual rollers to form dough sheet.
2. The dough sheet is cut into round of the same size by the auxiliary cutting mechanism of main engine in the process of advancing.

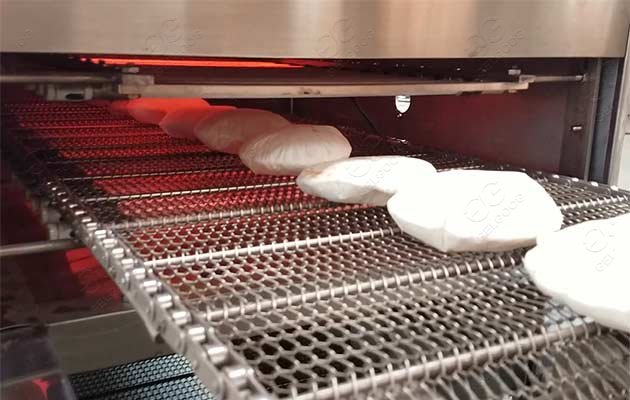

3. The round dough sheet is carried forward with the conveyor belt to the baking machine and baked in two stages.
4. Cooling and packaging.


Technical Data

PRODUCT NAME

SPECIFICATION

Mixing part

Size:

L1000mm*W500mm*H800mm

Capacity: 20kg per loading (5 minutes per loading)

Power: 3KW

Voltage: 308V, 3phases, 50hz

Speed: 365RPM

Material:

Stainless steel

Shaping machine

Size:

L1670mm*W550mm*H1830mm

Capacity: 1500-2000pcs/hour

Thickness of food:0.5-6.0mm

Size of food: 0-45cm

Power: 3KW

Voltage: 308V, 3phases, 50hz

Material: Stainless steel

Resting conveyor

Size:

L4200mm*W8500mm*H1500mm

Power: 8.8KW

Voltage: 308V, 3phases, 50hz

Material:

Stainless steel

Baking tunnel

Size:

L3600mm*W1000mm*H1400mm

Power: 35KW

Voltage: 308V, 3phases, 50hz

Material:

Stainless steel

Cooling tunnel

Size:

L3160mm*W780mm*H1450mm

Power:1KW

Voltage: 308V, 3phases, 50hz

Material:

Stainless steel
