Stainless Steel Spring Roll Wrapper Making Machine Manufacturer

  • Brand:GELGOOG
  • Capacity:1000-5000pcs/h
  • WhatsApp: +8618537181190

Features

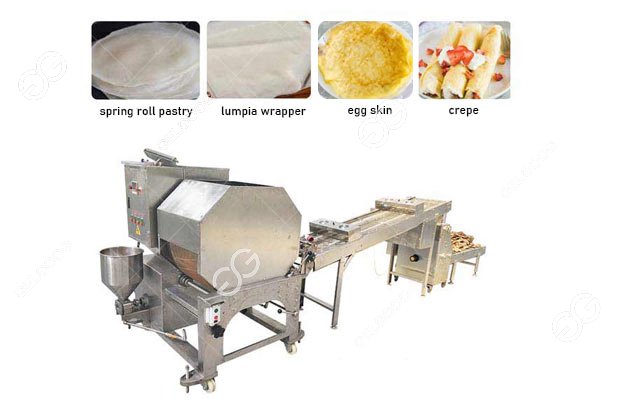

Automatic spring roll wrapper machine can make spring roll pastry, lumpia wrapper, crepe, egg roll skin, etc.with a thickness of 0.3-2 mm. The spring roll wrapper machine is easy to operate, the thickness of the wrapper is adjustable, and the size can be customized according to the mold.
automatic spring roll wrapper machine

Introduction of Spring Roll Wrapper Making Machine
The stainless steel spring roll wrapper making machine is made of 304 stainless steel; it uses flour as material, you also can add some spice to make spring roll sheet, which is easy operation and high capacity. The roll wrapper maker is suitable for food factories, restaurants, fast food restaurants, etc. The thickness of the finished wrapper is changeable, depend on exact recipe proportion. The shape of the pastry can be customized in round, square, rectangular, oval or other shapes.

The working process of spring roll wrapper making machine
The dough is prepared according to the requirements of the dough making process. After the dough is heated and baked by the round baking wheel, it becomes a fixed thickness spring roll or other sheet-like food.
 spring roll pastry making machine
Process of making spring roll wrapper:
Put the mixed dough into the dough bucket. When the baking wheel is heated to about 150-160 ° C (the temperature control table shows the temperature), start the slurry pump to send the slurry to the nozzle, and operate the clutch lever. The surface paste is adhered to the arc surface of the roasting wheel. When the roasting wheel rotates over the angle of 270-300 degrees, the dough is matured and automatically separated from the roasting wheel to form a fixed thickness spring roll, which is cut into squares after being cut by the cutting machine.

Video:


GELGOOG also provides full set of Spring Roll Production Line

Technical Data

Model GGSR400-8X GGSR400-8F GGSR400-8X
Diameter of baking part 800mm 800mm 800mm
Width of dough sheet 420mm (can be customized according
to customer requirements)
420mm (can be customized according
to customer requirements)
420mm (can be customized according
to customer requirements)
Speed/Capacity
Input power 30KW 30KW 29KW
Heating method Electric Electric Electric
Components Dough sheet making machine, cooling conveyor,
cutting machine, alignment conveyor
Dough sheet making machine, cooling conveyor,
cutting machine
Dough sheet making machine, cooling conveyor
Dimensions 5500*1300*1500mm 4000*1300*1500mm 3500*1300*1500mm
