Grain Dryer Machine|Rice Corn Seed Drying Machine

Material: grain,rice,paddy

Capacity: 500-3000kg/time

Loading Port: Qingdao port

Description:

It is suitable for drying kinds of feed and grains,such as fish feed pellet,wheat and corn etc.It is with high capacity 500-3000kg/time and high efficiency.

Share this Facebook LinkenIn Twitter Youtube

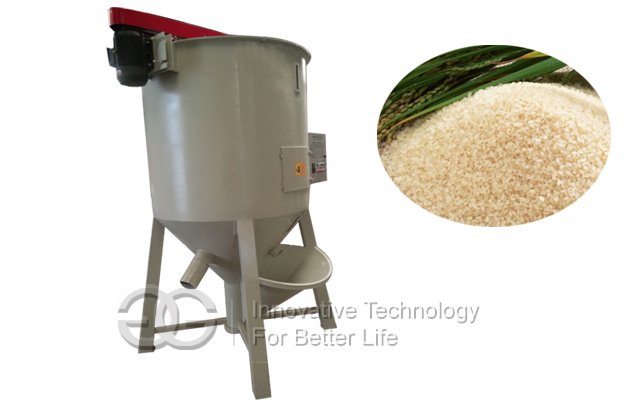

The grain dryer machine consists of two level spiral quick delivery, often used for drying some grains, such as rice, wheat, corn, paddy and so on. The first level deliver the materials quickly into the barrel, and  the second level continuously rapid lift the raw material to the upper of the barrel and then throw the raw material with deliquesce scattered,while the hot air from the center of the barrel bottom blown out all around. Smoothly move the raw material from bottom to top to conduct a comprehensive heat transfer and dynamic drying process.Because the raw materials inside the barrel are keep rolling,hot air continuously from the center so as to achieve mixing and drying simultaneously and can save time and energy.The material of barrel, screw blade, shaft, tank, holder which contact part of the raw material all use stainless steel.When need to clear material,just open the purging mouth,to make spiral reverse and start drying fan then can clear material,easy to operate.
grain dryer machine
Features of the grain dryer machine:
1.High efficient
2.Can print and record operation parameters under the control of PLC and HMI.
3.Inlet handling system consists of 3 grades filter
4.Exhaust air can be designed as the customers’ requirements.
5.Lifter unloading or vacuum unloading is designed to form dust free unloading,meeting with the GMP.
6.Anti-explosion is optional to guarantee safety.


Model GGHG-500 GGHG-1000 GGHG-3000
Capacity 500kg/time 1000kg/time 3000kg/time
Hopper Capacity 500L 1000L 4800L
Speed of mainshaft 330 (r/min) 330 (r/min) 330 (r/min)
Motor power 3kw 3 kw 4kw
Heating power 24kw 36 kw 48kw
Voltage 380V/50HZ 380V/50HZ 380V/50HZ
Machine size 1000*2700mm 1300*2880mm 1800*3500mm
