Potato Starch Production Line

Material: potato,cassava,sweet potato,lotus root,Pueraria lobata

Capacity: 500kg,1tons,2tons/h,can be customized

Loading Port: Qingdao Port

Description:

Remove stone—washing-- steam peeling-- dry brush peeling-- sorting and pruning--slicing--blanching and cooling-- cooking and mashing—transport—unifying materials—making flakes—scraping--packing.


Washing &Crushing Section
potato, the material is sent to cage washer through scrape board to get the result of decontamination, cleaning and peeling . Then through a paddle-washing slot, material is sent to crash section.

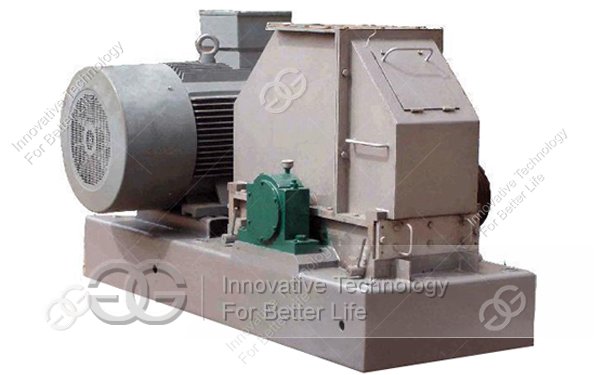

We adopt the rasper to crash materials. Compared with traditional crasher, it has the large capacity, high starch
dissociation degree features, which are essential to get high starch recovery.

Milling and grinding section
Grinding clean potato root into cassava slurry to make it easy dewatering and drying.
Milling and grinding section

Concentrating Section

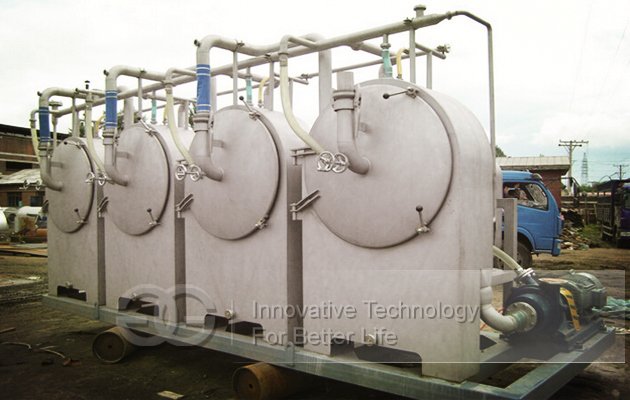

The crashed material is sent to centrifugal sieve through pump to extract starch and separate potato residues.Centrifugal sieve group are 4 or 5 stages, the front stages is to extract starch and the last stage is to dewater the potato  residues. The whole stage adopts countercurrent washing to get the best results and saving water.
Concentrating Section

De-hydrating section
Sending the fine slurry to dewatering machine to remove the moisture inside the slurry, and then send it to the air dryer.

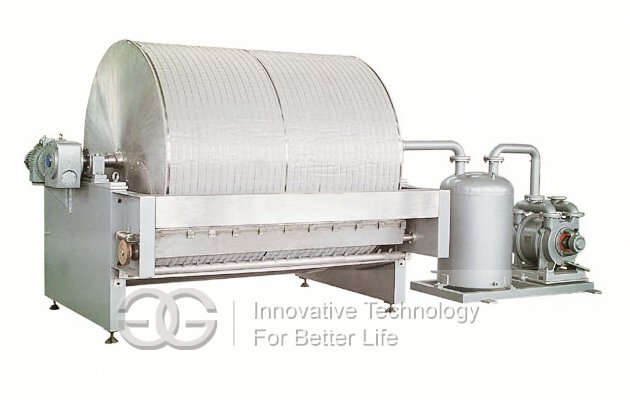

Compared with other starch, it is more suitable for potato starch to dewater by vacuum filter. Moisture content of
dewatered starch is 38~40%. Wet starch is sent to drying system through belt conveyer.

De-hydrating section

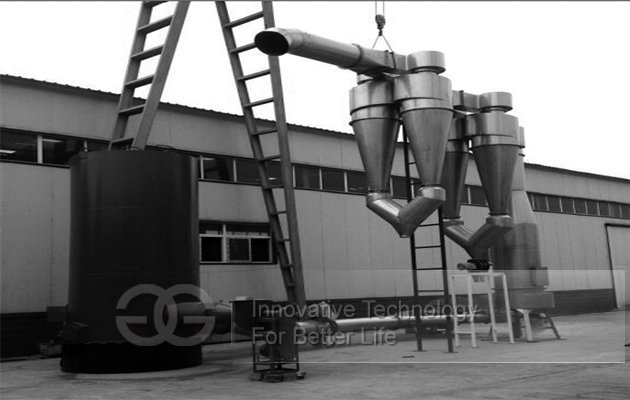

Drying section
Drying the dewatered cassava flour in the air dryer to get dry product.
Dried starch reaches sieving system. High efficiency cooling starch sifter is used to cool starch and get the best starch .

 Drying section
ITEM Name and model  unit Quantity Power
First  Clean machine
1 Water power convey groove
2 Cleaning machine Ⅰ set 1 3
3 Cleaning machine Ⅱ Set  1 1.5
4 Potato cleaning convey machine  set 1 3
Second Extraction and refining section
1 extrusion-milling machine
(making powder )
Set  1 30
2 Fine filter (latex) Set  2 3
3 Starch micro-filtration machine Set  1 1
4 Desanding machine  Set  1 3
5 Refined starch concentration system Group  11 66.5
6 Automatic vacuum dryer set 1 14
7 Conveyor set 1 3
8 Interim tank
Third Dry section
1 Air dryer  Set  1 28
2 Radiator Set  1
3 Starch screen Set  1
4 Distribution Cabinet Set  1
5 A ton of boiler Set  1
Fourth Aid machine
1 Power line
2 Packing machine    1
3 Pipelined and pump/motor
4 Non-standard parts and other materials
