Commercial Walnut Cracker Machine|Walnut Dehulling Equipment

Material: walnut

Capacity: 250 KG/H

Loading Port: Qingdao port

Description:

Commercial walnut cracking machine is mainly used for cracking walnuts. Instead of artificial shelling, it saves time and effort.The walnut cracking machine consists of a frame, a feeder, a stator and a rotor, and a 1.5KW cycloid reducer.

Share this Facebook LinkenIn Twitter Google+ Youtube
Commercial walnut cracking machine is mainly used for cracking walnuts. Instead of artificial shelling, it saves time and effort.The walnut cracking machine consists of a frame, a feeder, a stator and a rotor, and a 1.5KW cycloid reducer. The walnut cracker is with compact structure, simple operation, stable and reliable performance, high shelling efficiency, low breaking rate of walnut kernel, and good sorting and low loss rate.

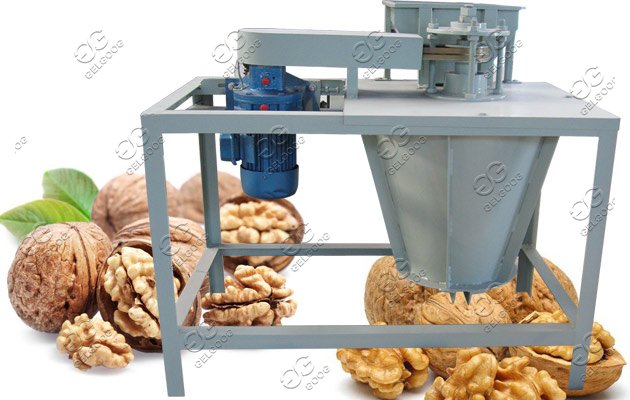

walnut cracking machine
Working principle of the walnut cracking machine:
After the equipment is in normal operation, the walnuts are quantitatively, uniformly and continuously put into the feeding hopper, and the shelling machine is unsealed by the principle of extrusion of the stator and the rotor and tearing of the pattern. During the process of shelling, the extrusion and the tearing act simultaneously, increasing the degree of cracking of the walnut shell. The walnut is pushed into the shell of the shell at a certain distance under the rotation of the rotor, and the force is continuously pressed along the surface of the shell. The crack continues to expand until the nut shell of the walnut is completely broken and detached, and the shell and the nut are small through the drum. The gap falls and the purpose of shelling is achieved. The spacing is adjusted according to the thickness of the walnut shell produced in different regions and the size of the walnut.

Model Power(KW) Capacity(KG/H) Size(mm) Weight(KG) Shelling rate
GGKH1 1.5 250 1200*800*1300 200 ≥99%
