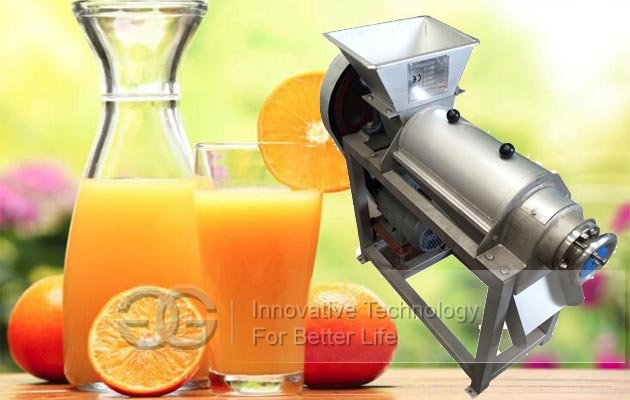

Commercial Fruit juicer is developed by Henan GELGOOG Machinery, absorbing advanced international technology. The commercial fruit juicer machine
is widely used to process watermelon, grapes, strawberries, pears, apples, lemons, oranges, tomatoes, papaya, radish, ginger and other fruit and vegetable into juices.
The structure and working principle of commercial fruit juicer machine:
Commercial fruit juicer machine is composed of front support, feeding hopper, screw, filter, Sheng Ju, rear support, slag tank and other parts. The screw spindle is supported in the rolling bearing and the right end is supported in the hand wheel bearing. The motor is driven by a pair of V- Drive the screw to work.
2, The working principle:
The main component of commercial juicer equipment is that the bottom diameter of the spiral gradually increases along the exit direction of the slag and the pitch gradually decreases. When the material is propelled by the screw, the volume of the screw cavity is reduced to form the material squeezing. The direction of rotation of the screw spindle from the feed hopper to slag tank direction, clockwise. The raw material is fed into the hopper and pressed under the helical propulsion. The squeezed juice flows through the strainer into the bottom juice holder, and the waste is discharged through the annular gap formed between the spiral and the conical part of the pressure regulation. The pressure head moves along the axial direction to adjust the size of the gap. For clockwise (from the slag tank to the feed hopper to see when turning the hand wheel axle bearing, the pressure regulator head to the left, the gap is reduced, otherwise the gap becomes larger.) Change the size of the gap, that is, adjust the row Residue of slag. You can change the slag rate, but if the gap is too small, under strong extrusion, some of the slag particles and the juice will be squeezed out through the filter, although the juice increases.
GELGOOG offer commercial fruit juicer machine with 3 models, different capacities with different specifications and prices.
Model GGZ-1: Power 0.55KW,Capacity 0.1-0.5T/H,Screw Diameter 135MM and Size 1000*320*980MM
Model GGZ-2: Power 4KWKW,Capacity 0.3-1.5T/H/H,Screw Diameter 175MM and Size 1560*450*1340MM
Model GGZ-3: Power 11KW,Capacity 0.6-2.5T/H,Screw Diameter 215MM and Size 2200*600*1560MM
For prices of hot selling commercial fruit juicer machine, pleaes contact us at Email: [email protected]
or Tel/WhatsApp: 0086-18537181190
