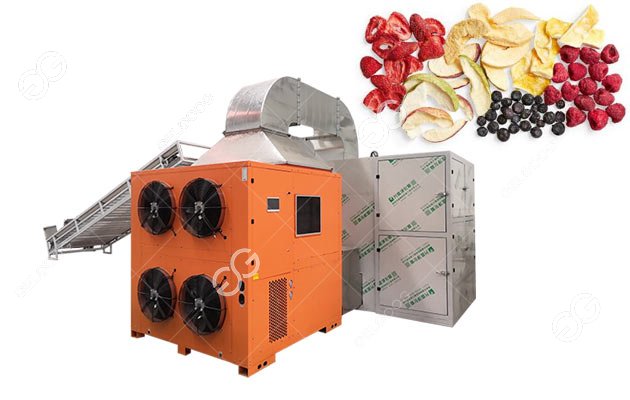

Continuous Food Drying Equipment With Mesh Belt

  • Brand:GELGOOG
  • Capacity:Can be customized
  • WhatsApp: +8618537181190

Features

The continuous drying equipment with mesh belt is a continuous flow drying machine used for drying food, especially suitable for materials with high moisture content and high temperature, such as dehydrated vegetables, herbal etc. Advantages: Fast drying speed, high evaporation intensity, high yield. GEGLOOG provides continuous dryers with Four Layers, Five Layers and Six Layers.
The heating methods: Heat pump type, gas type
continuous food drying equipment
Advantages of continuous mesh belt dryer
☆ Large output, suitable for factory use
The pollution-free oven in the production process adopts a multi-layer structure, with a large drying area, which can realize continuous production in large quantities.
☆ High productivity
The material to be processed is conveyed by a multi-layer mobile stainless steel mesh belt, and the hot air flows through the mesh belt and the material layer above it from bottom to top. The multi-layer cycle is flip-dried layer by layer. The heat and mass exchange is uniform and sufficient, and the production efficiency is high.
☆High energy saving efficiency
The heat source is a high-efficiency and energy-saving hot blast stove, which is fully burned indoors. The hot air after combustion is converted into suitable low temperature heat through a heat exchanger. The converted hot air is pure hot air, which is economical and environmentally friendly.
Video:


GELGOOG continuous drying equipment adopts a lifting device with a straightening machine, equipped with a cooling layer and a vibrating conveying device, the discharge temperature is low, which is conducive to timely packaging; the thickness of the material layer does not need to be adjusted. A variety of models of different sizes can meet the needs of a variety of materials and different production scales, such as ginger, garlic, onion, apple, carrot, berries, lemon, banana, etc.
continuous drying equipment for sale
GELGOOG prodives full set of drying solutions for fruit and vegetables, including fruit washing equipment, cutting equipment, drying equipment, etc. Multi-layer mesh belt structure, small footprint, large drying output, suitable for drying and dehydration of various materials, factory direct sales, quality assurance, provide customized solutions.

Technical Data

Model Power Dimension
GGLG0460AE Equipped with 2 heat pumps(25P/one) 6*2.2*2.5m
GGLG0480AE Equipped with 3 heat pumps(25P/one) 8*2.2*2.5m
GGLG0410AE Equipped with 4 heat pumps(25P/one) 10*2.2*2.5m
GGLG0412AE Equipped with 5 heat pumps(25P/one) 11*2.2*2.5m
GGLG0460AG 40WKcal/h 6*2.2*2.5m
GGLG0480AG 60WKcal/h 8*2.2*2.5m
GGLG0410AG 80WKcal/h 10*2.2*2.5m
GGLG0412AG 100WKcal/h 11*2.2*2.5m
