Fruit Vegetable Drying Dehydrator Oven Machine Hot Sale

  • Brand:GELGOOG
  • Capacity:72-576 KG
  • WhatsApp: +8618537181190


Fruit Vegetable Drying Oven Machine is a time saving industrial food dehydrator, which is an ideal choice for drying various foods like apple, banana plantain, berries, coconut, ginger, chili, mango, kiwi, lemon, cucumber, sweet potato, purple sweet potato, cassava chips, and also noodles etc

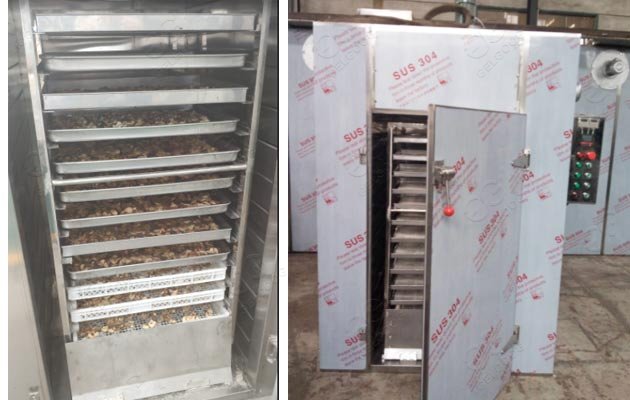

industrial food dehydrator

Advantage Of Industrial Fruit Vegetable Dehydrator:
1.The operating temperature range: 50~140 degrees C (can be set according to the requirements of the work).
2. The heat source is: electric heating.
3. Maximum loading material: 192x3=576kg/ times (proportion in the 0.8~1 or so).
4. The temperature rise of the box shell temperature <40 degrees C (in continuous working 3 hours or more).
5. The working noise is <72dB (DB).

Details of Industrial Food Dehydrator:
♥ The heating source steam, electricity, available for users to choose
♥ Operating temperature: steam heating 50~140℃, maximum 150℃; electricity, far-infrared temperature 50~300℃ (normal temperature of drying oven is normal temperature~120℃, high temperature needs to be customized);
♥ The usual vapor pressure is 0.02~0.8mpa (0.02~8KG/cm2)
♥ Calculate 15KW with electric heating according to type I, practical 5~8KW/h
♥ The dimensions of the drying car and the baking tray are uniform at the factory, and the baking tray size can be exchanged: 640×460×45mm

food drying machine
The industrial fruit vegetable drying machine adopts a special high-volume axial fan to work independently, through the built-in electric heating tube, equipped with high-power thyristor controller, PID digital display intelligent temperature controller, relay and other advanced control devices to achieve high temperature control accuracy. Appointment time function, automatic constant temperature, automatic dehumidification and other functions, automatic alarm for over-temperature, make the control more user-friendly.

Technical Data

Model HX1-1 HX2-2 HX2-4 HX3-6 HX4-8
Qty of dryer 1 2 4 6 8
Qty of drying tray 24 48 96 144 192
Circulating fan 1 1 2 3 4
hydrofuge fan 1 1 1 1 2
Power 12 18 30 48 60
Dimension(meters) 1.6x1.2x2.35 2.5x1.2x2.35 2.5x2.2x2.35 3.5x2.2x2.35 4.8x2.2x2.35
Net weight( 470 760 1000 1650 2000
Packing dimension(meters) 1.72x1.36x2.26 2.63x1.36x2.26 2.63x2.26x2.26 3.63x2.26x2.26 4.93x2.26x2.26
Packing weight 520 830 1100 1800 2150
Capacity(kg) 72 144 288 432 576
