Essential Information

The commercial fried temeles frying machine is a kind of continuous frying machine, which is specially designed for industrial use, including automatic belt conveying system, elevating system, oil adding system, oil temperature controlling system. The frying machine has widely applications, like to fry potato chips, french fries, banana/plantain chips, pork skin, chin chin, kuli kuli, puffed snacks, extruded pellets, dough snacks, beans, peanuts, fresh vegetables, onions, etc. For different food, we will apply either single belt or double belt fryers.

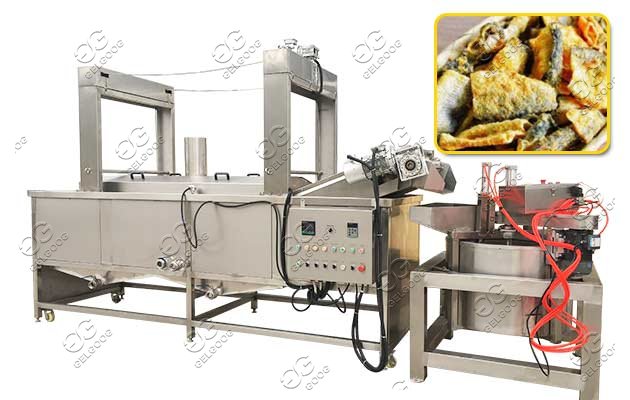

commercial tameles frying machine

The fried tameles frying machine can use electricity, gas heating types to achieve industrial production, which is with the features of easy operation, stable performance and long time working, labor saving, easy maintained.

Characteristics:

1.Detachable design of frying body and conveying is convenient to clean up the left material. The lifting and falling of frying body is controlled by height switch.

2.High efficient circulating hot oil electrical heating way makes oil temperature heat up quickly with small fluctuation. During frying, dynamic de-oiling system clears away residues in time to keep oil clean and fresh. Adjust the pressure of hot oil circulating pump to enable enough force to hot oil avoiding material piled and over-fried.

3.Hot oil boiler circular beating makes tempearture up fast and small fluctuation of oil temperature.

4.Dynamic oil filter system cleans the waste residue and keeps oil fresh during frying.

5.Optimized boiler structure can reduce the needed oil quantity and make high oil velocity.

6.The boiler body and conveying part can be separated for easy cleaning, vibrating feeding materials, discharging equality.
7. GELGOOG also provide auxiliary machinery or services, like oil tanks, pumps, oil filters, pipes and etc., which will help to monitor the oil level, feed oil automatically, filter oil, so as to save much more production cost

Technical Data

Model	Heating type	Power	Size（MM）	Weight （KG）	Capacity （KG）	Oil Consumption (L)	Gas consumption
GGZLD3500	Electricity	delivery:1.5KW Elevator: 0.75KW Heating:100KW	370014002300	800	200	800L
GGZLQ3500	Gas	Delivery:1.5KW Elevator: 0.75KW	370017002300	1200	200	1200L	23m³
GGZLD4000	Electricity	Delivery:1.5KW Elevator:0.75KW Heating:110KW	420014002300	1000	300	950L
GGZLQ4000	Gas	delivery:1.5KW Elevator: 0.75KW	420017002300	1400	300	1420L	23m³
GGZLD5000	Electricity	delivery:1.5KW Elevator: 1.5KW Heating:120KW	520014002300	1200	500	1230L
GGZLQ5000	Gas	delivery:1.5KW Elevator: 1.5KW	520017002300	1600	500	1850L	34m³
GGZLD6000	Electricity	delivery:1.5KW Elevator: 1.5KW Heating:180KW	620014002300	1400	800	1520L
GGZLQ6000	Gas	delivery:2.2KW Elevator:1.5KW	620017002300	1800	800	2280L	45m³
GGZLD7000	Electricity	delivery:2.2KW Elevator: 1.5KW Heating:210KW	720014002300	1600	900	1810L
GGZLQ7000	Gas	delivery:2.2KW Elevator: 1.5KW	720017002300	2200	900	2700L	45m³
